Slitting Line 1,520 x 3.5 mm

Pos. 5,078

• producer

  OCEMI
• year of building

  2009
• condition

  perfect condition
• place

  installed, under production

Technical Data

• strip width (max)

  1,520 mm
• strip width (min.)

  30 mm
• strip thickness

  0.3 – 3.5 mm
• coil weight decoiler

  20,000 kg
• coil weight recoiler

  15,000 kg
• coil OØ

  1,800 mm
• coil IØ decoiler

  500 mm
• coil IØ recoiler

  500 mm
• speed

  110 m/min.

• hydraulic system
• security fence, available
• quality control mirrors, available

General informations

• AC/DC

  380 V, 50 Hz
• AC, control voltage, power side

  110 V, 50 Hz
• control voltage PLC

  24 V, DC
• magnetic valves

  24 V, DC

Line consist on ...

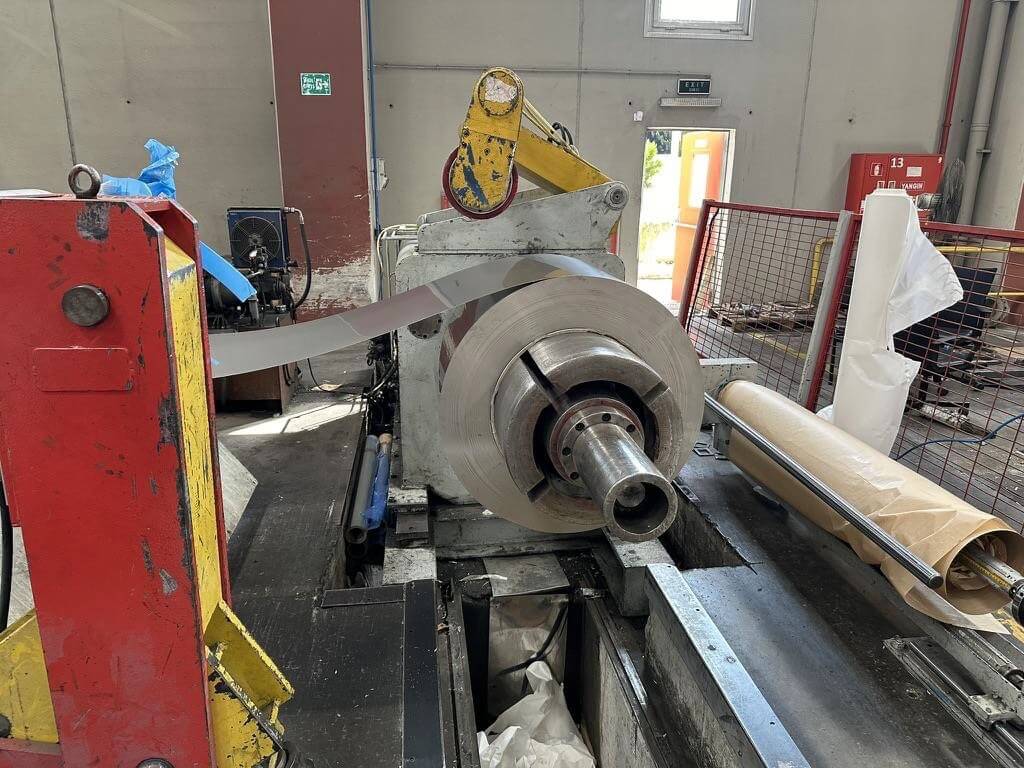

• uncoiler 508 / 610 mm
• uncoiler snubber roll
• support arm
• paper wrapping
• coil car
• peeler table
• PVC coating unit c/w press roller
• side guide
• shear entry roller
• cross shear

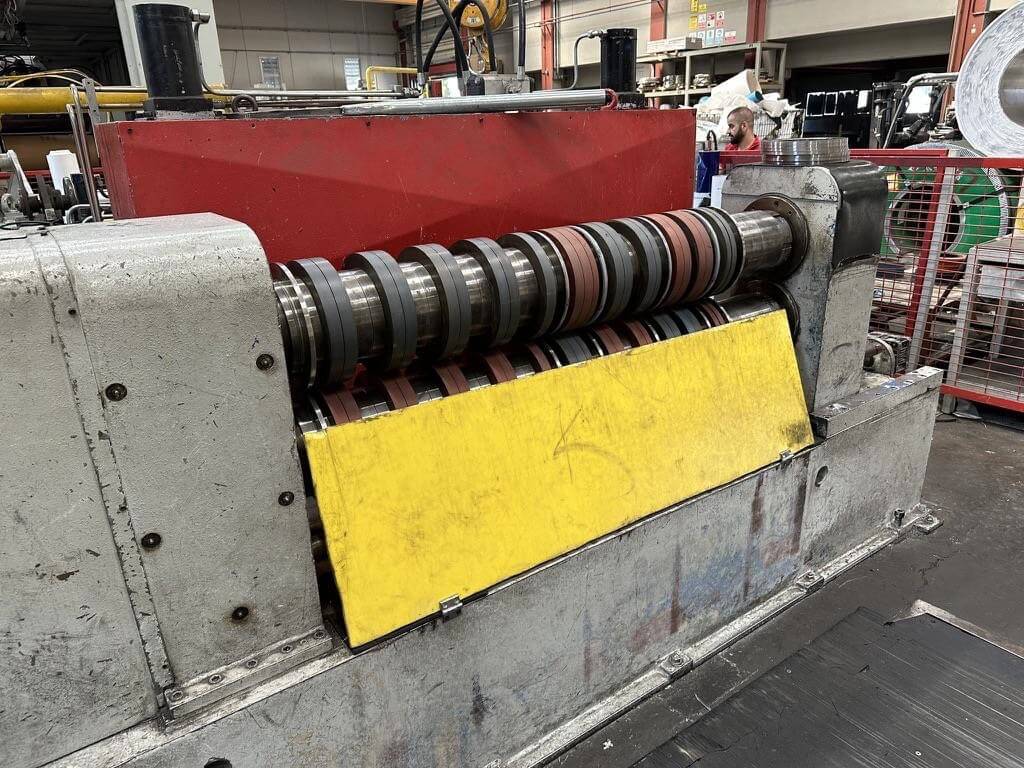

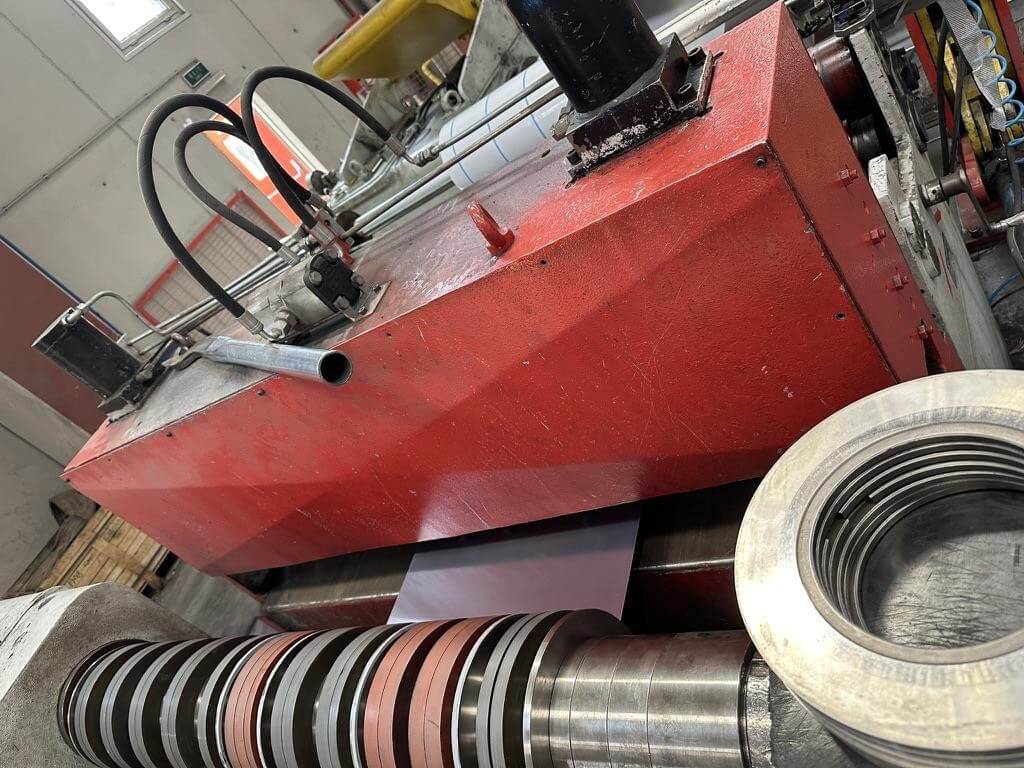

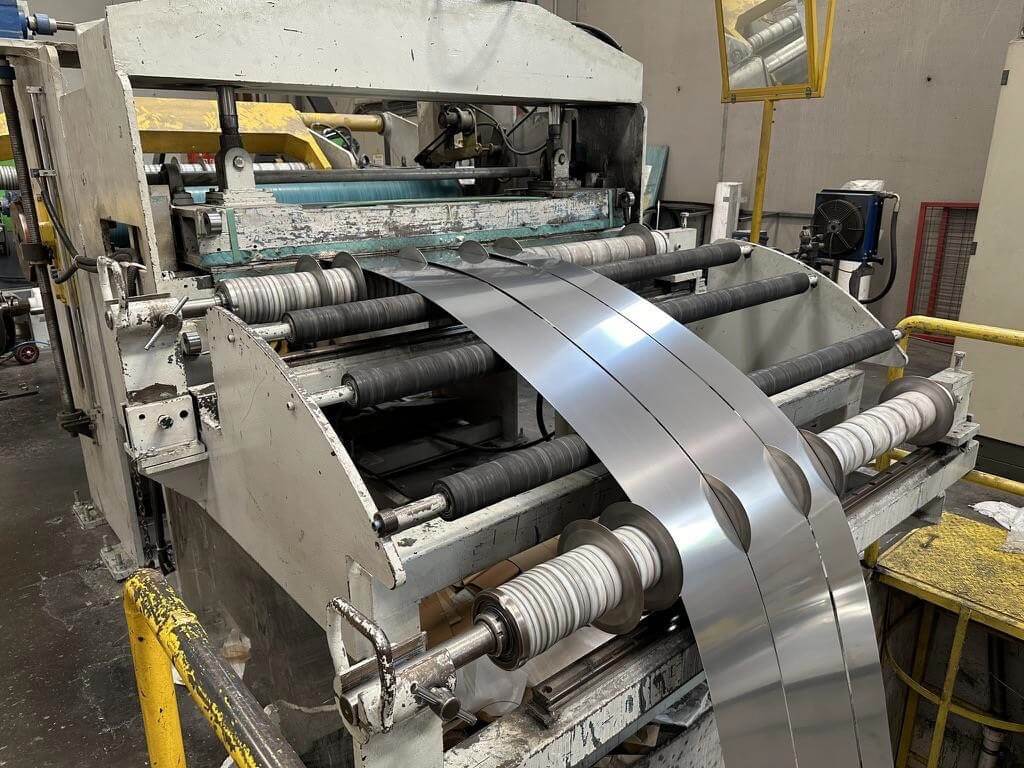

• slitter unit
• scrap winder
• transfer table

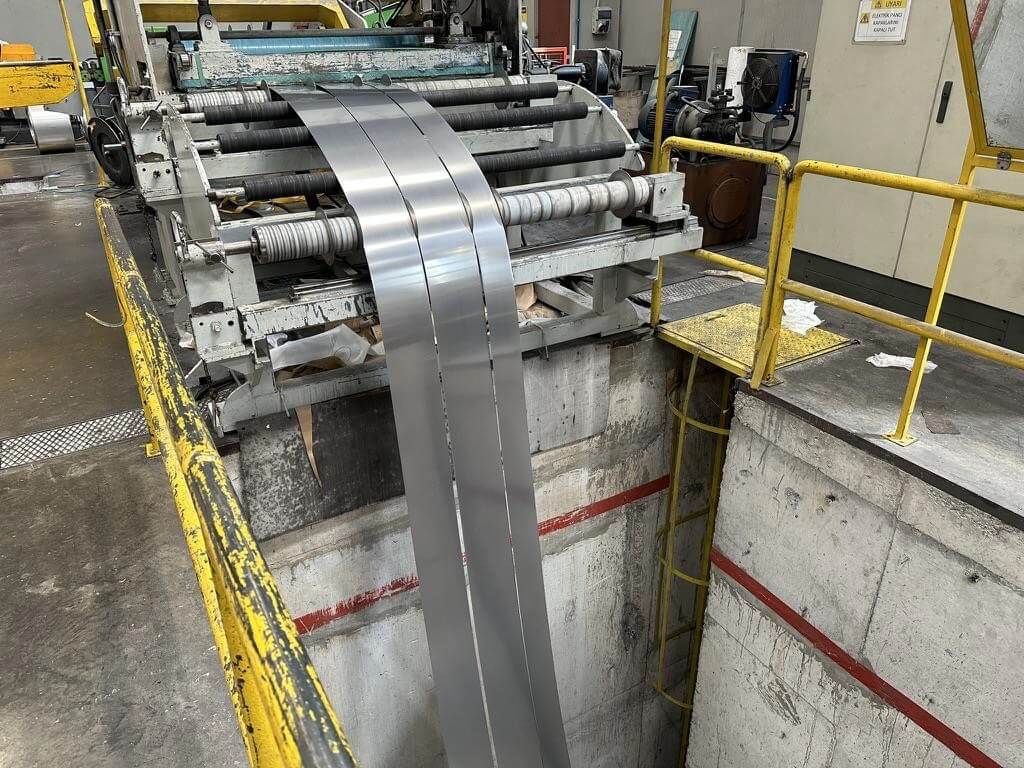

• pit table (2 pcs.)
• strip tension unit
• exit deflector roll & Peeler table

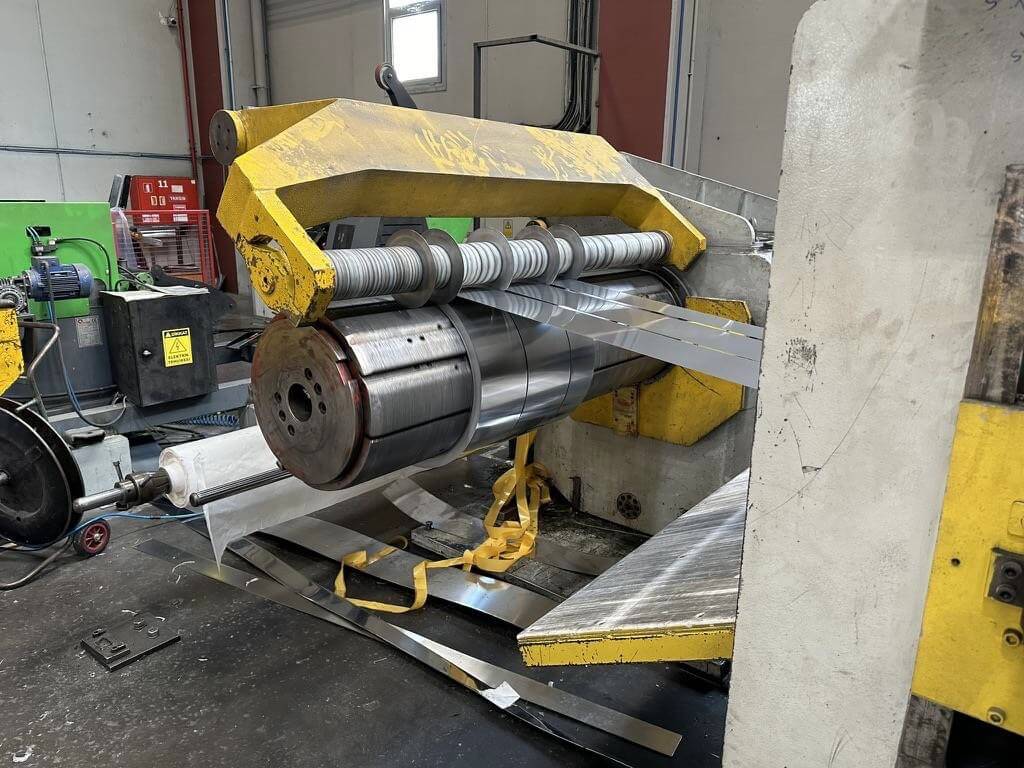

• recoiler 15 to. - 508 / 610 mm
• security fence
• quality control mirrows

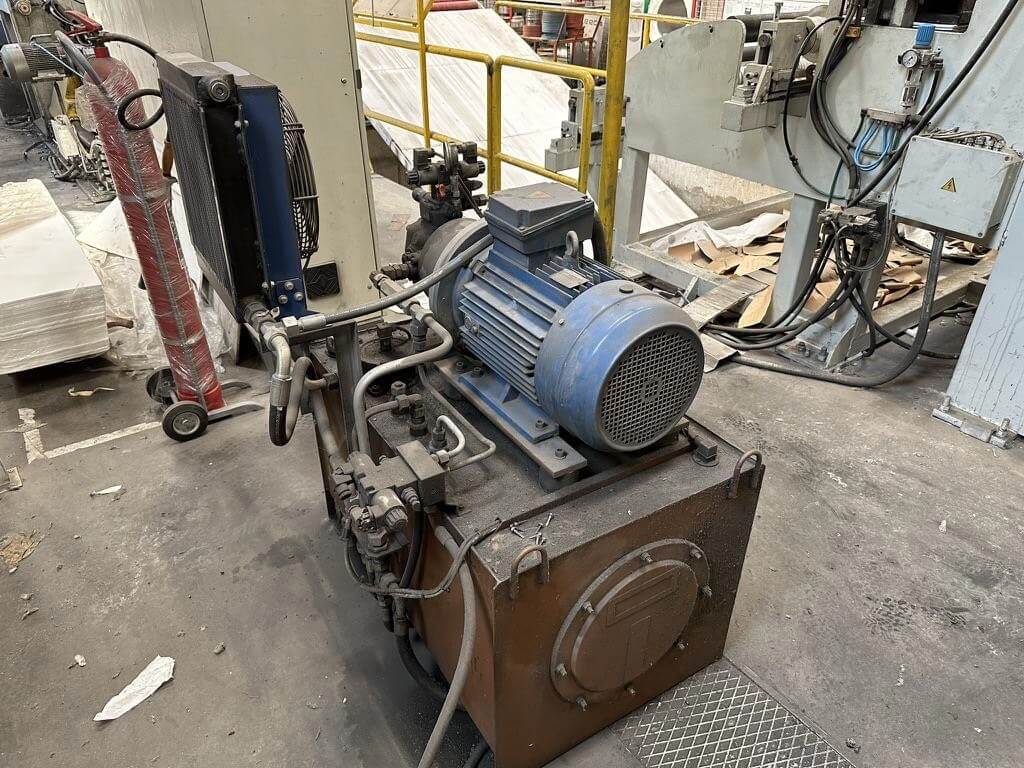

• hydraulic system
• electric project

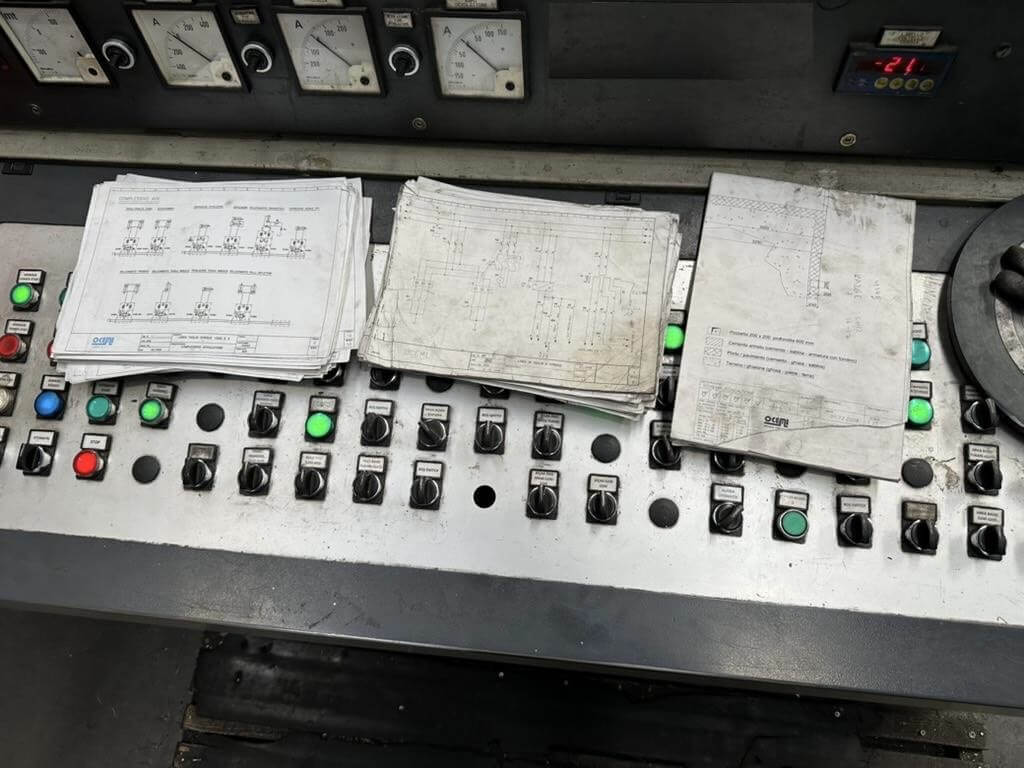

• entry control panel

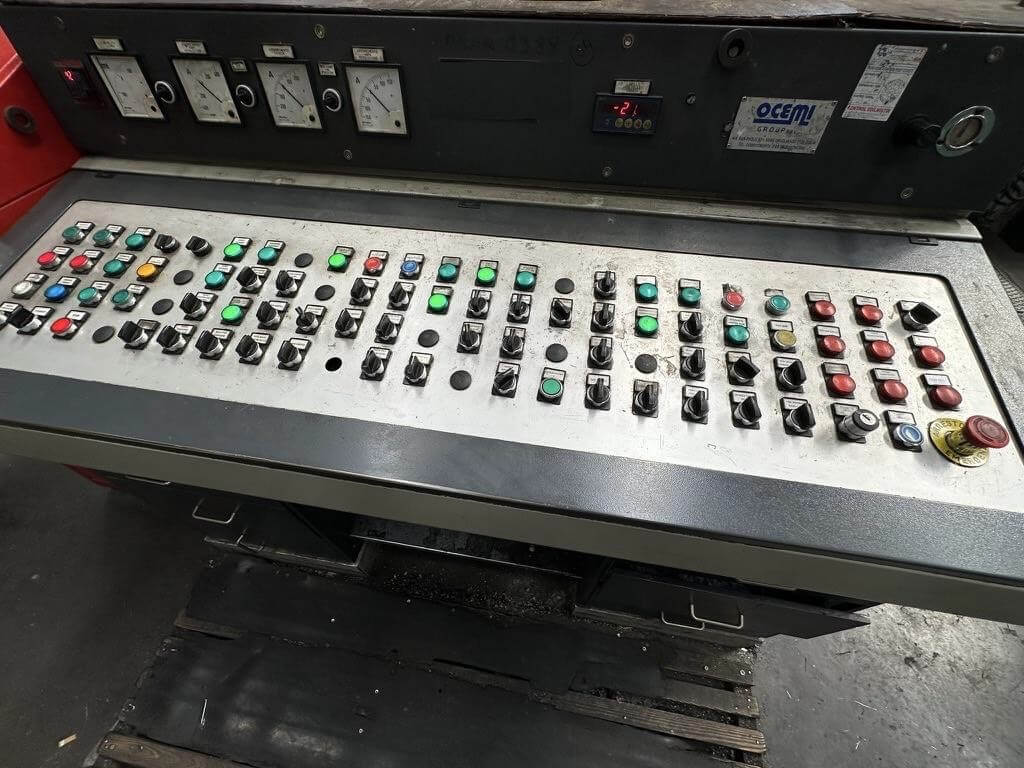

• main control panel
• exit control panel

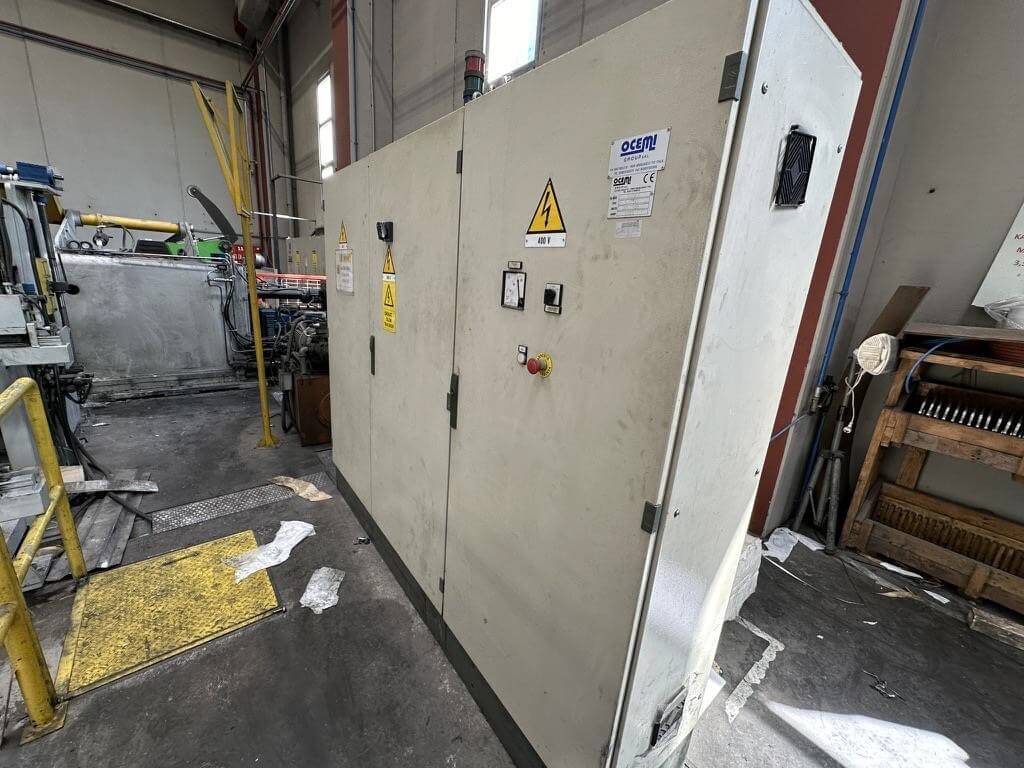

• main control cabinet
• line direction (right to left)
