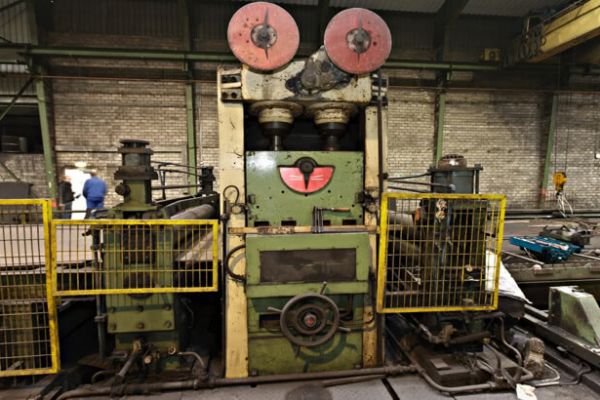

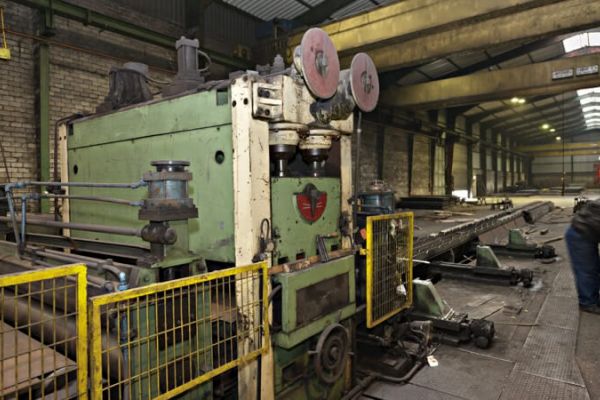

Cut to lenght line 2,000 x 13 / 15 mm

Pos. 4,057

• constructor

  FIMI
• year of building

  1976
• condition

  used
• location

  dismatled, clean stocked

Technical Data

• strip width

  max. 2,100 / 2,500 mm
  min. 800 mm
• strip thickness

  max. 13 / 15 / 20 mm possible
  min. 1.5 mm
• Coil I-Ø

  600 – 850 mm
• Coil O-Ø

  1,000 – 2,600 mm
• coil weight

  max. 45,000 kg
• speed

  max. 30 m/min.

This line consists of ...

• coil car max. 45 to.
• double cone decoiler
• coil opening group
• Portal with press rool frontal / bending roll / press roll behind
• Pre-leveling machine with no. 2 feeding rolls, no. 3 pre-leveling rolls, no. 1 correction roll, with DC drive
• Edge trimming slitter with transport belt 1.5 – 13 mm, strip width: 600 – 2,100 mm
• Leveling machine with drive 11 leveling rolls 5 - 15 mm
• Prec.-leveling machine with drive 15 leveling rolls 1.5 – 5.0 mm
• Flying shear mit electric control, hydraulic, transport belt, max. 15 cuts / min.
• Stacking unit with feeding with pair fedding rolls
• cpl. hydraulic unit

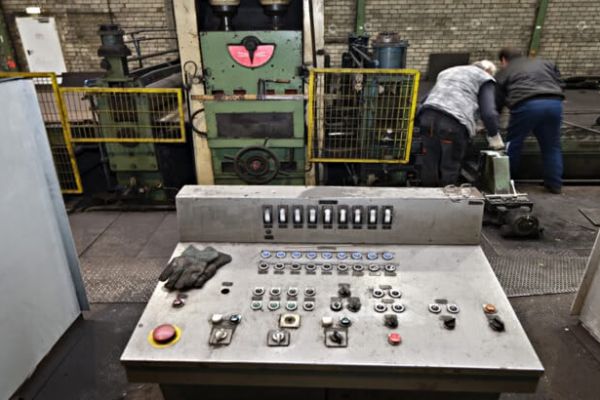

• cpl. electric control
