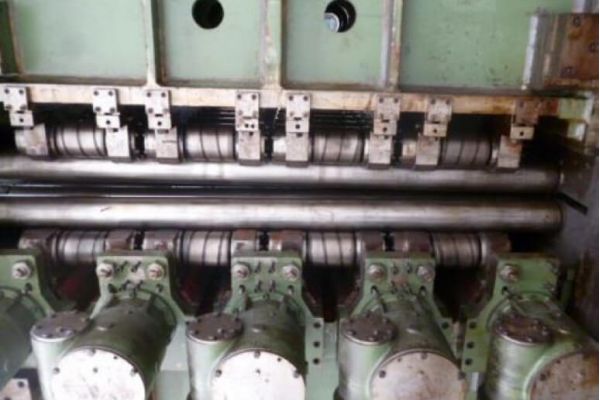

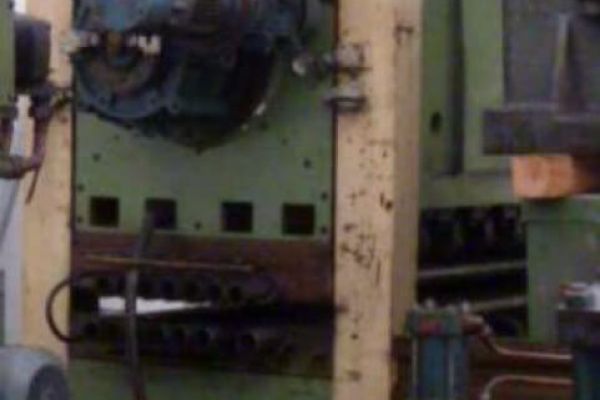

Cut to lenght line 2,000 x 15 mm

Pos. 4,017

• Manufacturer

  FIMI
• Model

  2,000 x 15
• Strip width

  800 – 2,000 mm
• Strip thickness

  1.5 – 15 mm
• Tensile strenght

  400 N/mm²
• Plate length

  12,000 mm
• Coil O Ø

  2,600 mm
• Coil weight

  35 to.
• Speed max.

  30 m/min.
• Bundle weight

  3,000 kg/m

Line consists of

• Double cone decoiler
• Coil car
• Pinch roll
• Pre-leveler no. of rolls 3 x 180 mm Ø
• Leveler #1 no. of rolls 11 x 130 mm Ø
• Leveler #2 no. of rolls 15 x 57 mm Ø
• Flying shear
• Stacking unit 12,000 mm length
• Loading 3,000 kg / linear meter

Commercial Terms

• Line as is where is
• Transport to revamping company
• Complete mechanical and hydraulic revamping
• Cleaned, repainted as new
• New cpl. electrical part
• New AC motors
• Line programming
• Pre assembly and vacuum test in company
