Slitting Line 500 x 2.5 mm

Pos. 5,100

• constructor

  ACD and others
• year of building

  2011 revamped
• condition

  good
• storage location

  Germany, dismantled

Technical Data

• model

  F 500
• material

  galvanized, cold rolled, inox, Al, Cu
• thickness

  0.3 -2.5 mm
• bandwidth

  500 mm
• decoiler inner Ø

  500 mm
• decoiler outer Ø

  1,500 mm
• slitter

  0.3 - 0.6 mm = 12 cuts
  0.6 - 0.8 mm = 10 cuts
  0.8 - 1.0 mm = 8 cuts
  1.0 - 1.5 mm = 6 cuts
  1.5 - 2.5 mm = 4 cuts
• min. strip width

  10 / 20 mm
• min. trimming width

  4.0 mm
• recolier outer Ø

  1,500 mm
• coil weight

  5,000 kg
• shaft Ø

  110 mm
• speed

  70 – 120 m/min.
• production

  ca. 15 to. / 8 h
• prodution / year

  ca. 10,000 to.
• for transport

  no. 1 trailer / 13,5 m x 22 to.

This line consists of ...

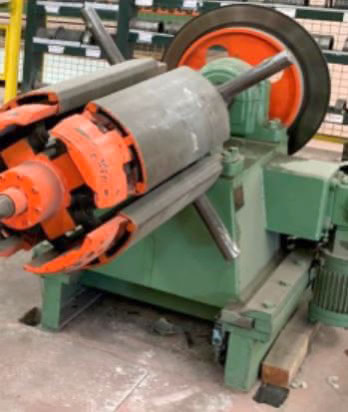

• decoiler with sliding movement and motor

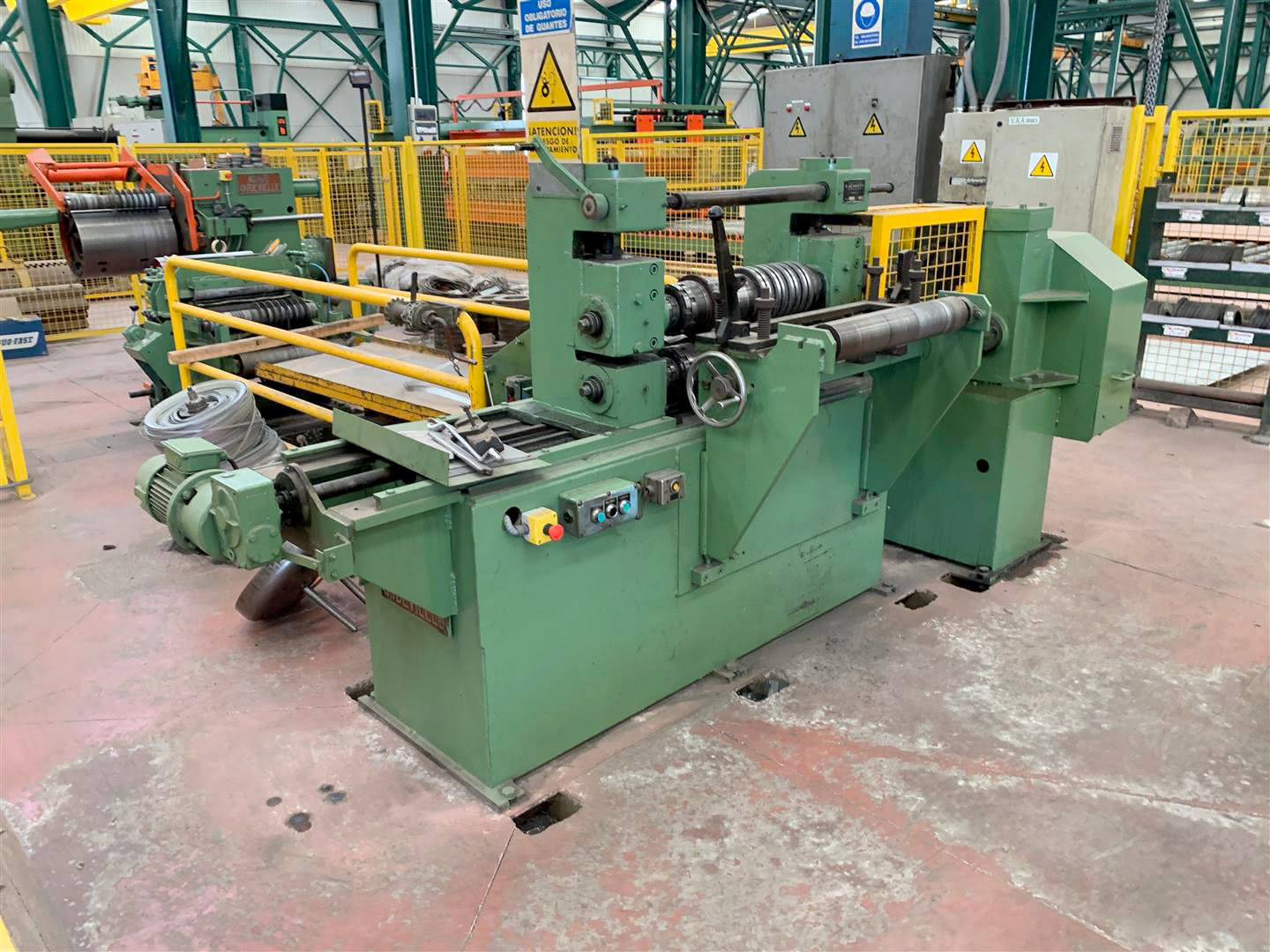

• slitter with garbox and motor
• outlet table
• roller conveyor
• table for roller conveyor (lifting up / down)

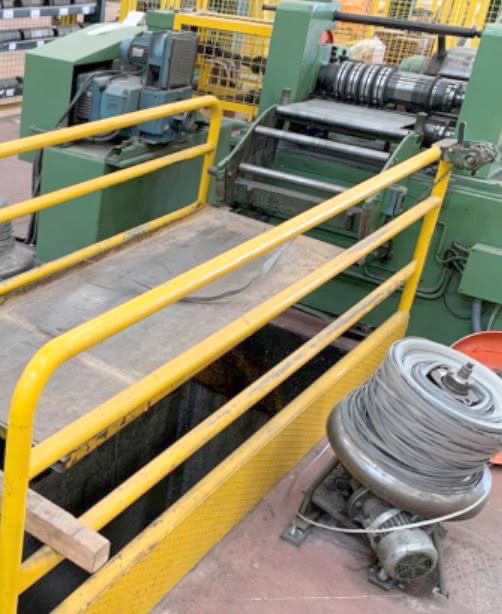

• no. 2 scrap recoiler
• saftey garden
• pre separating unit
• felt brake, mech. movement
• pinch roll

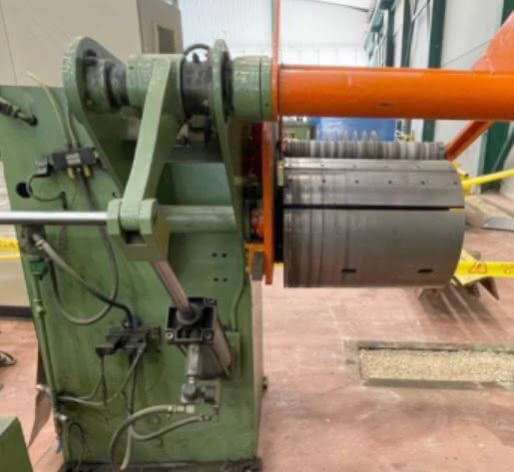

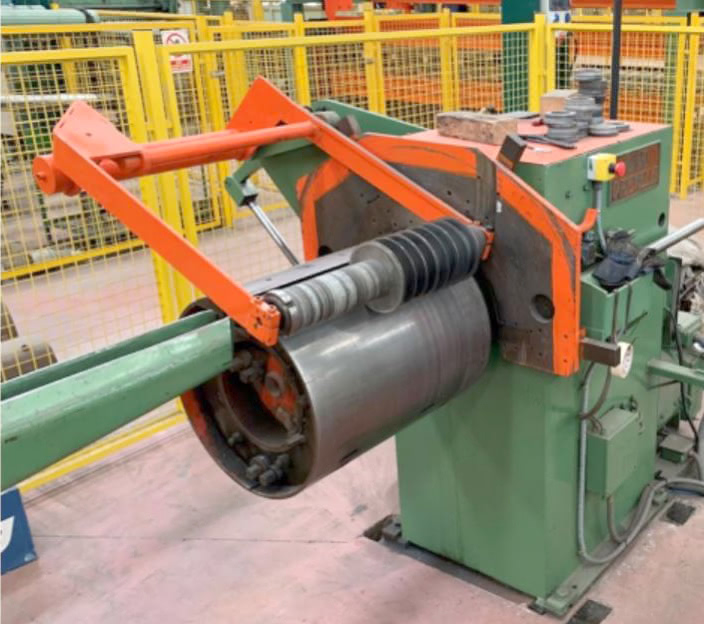

• recoiler 500 mm dia
• separating arm
• expeller
• turstile arm (2 arms)
• switch cabinet
• diff. blades, distance rings, rubberized rings
• saftey garden
• inverter
• switch board
• diff. palets with accessories, cables etc.
• layouts for reinstallation, + cpl. description for installation perfect existing
• cable list for reinstallation existing

Gallery

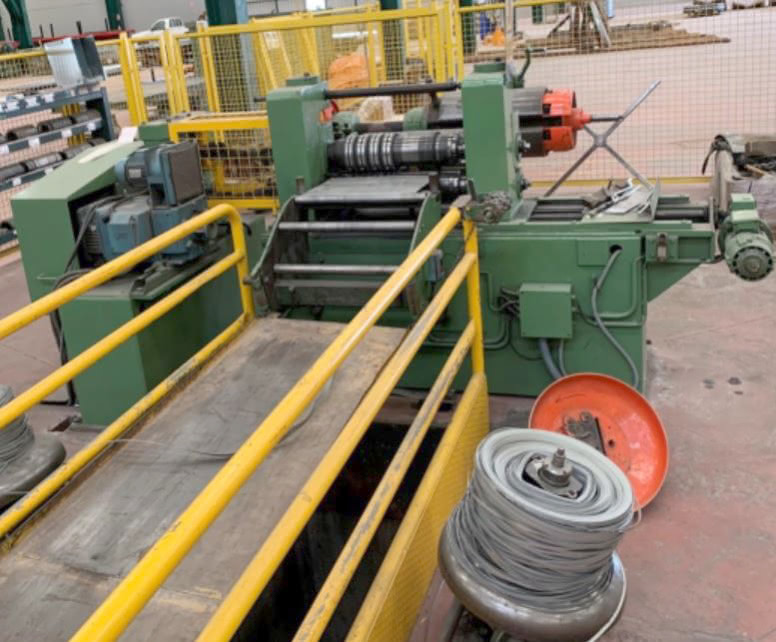

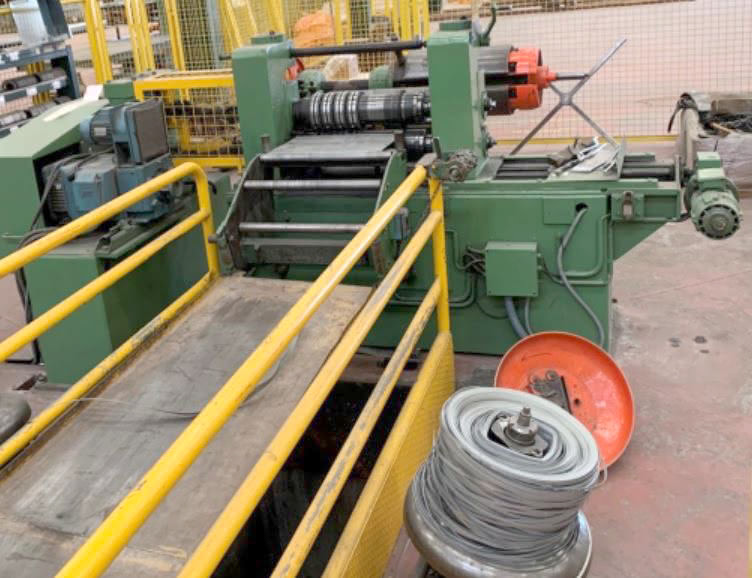

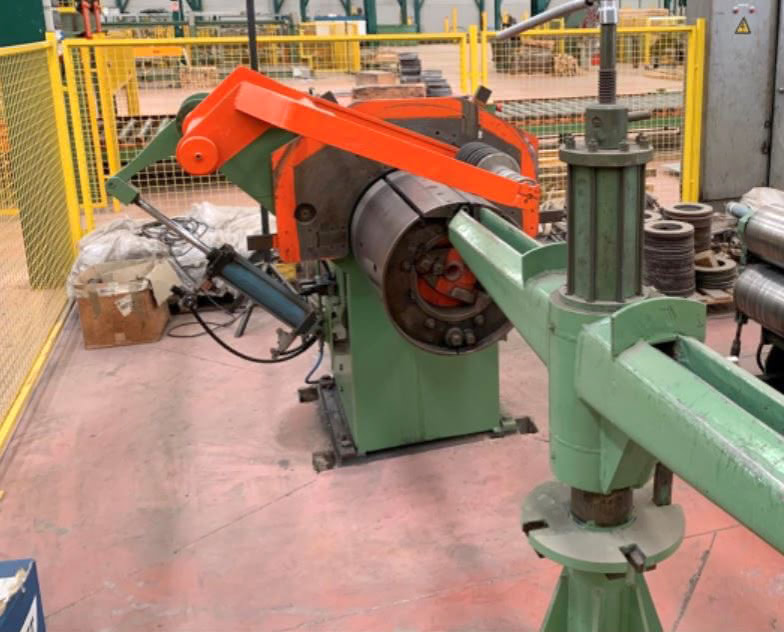

Photo 1

enlarge image

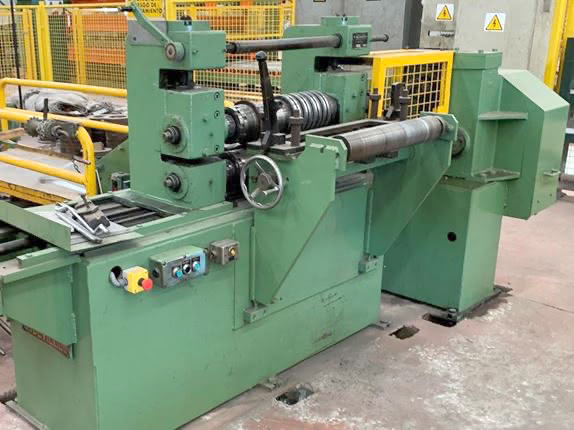

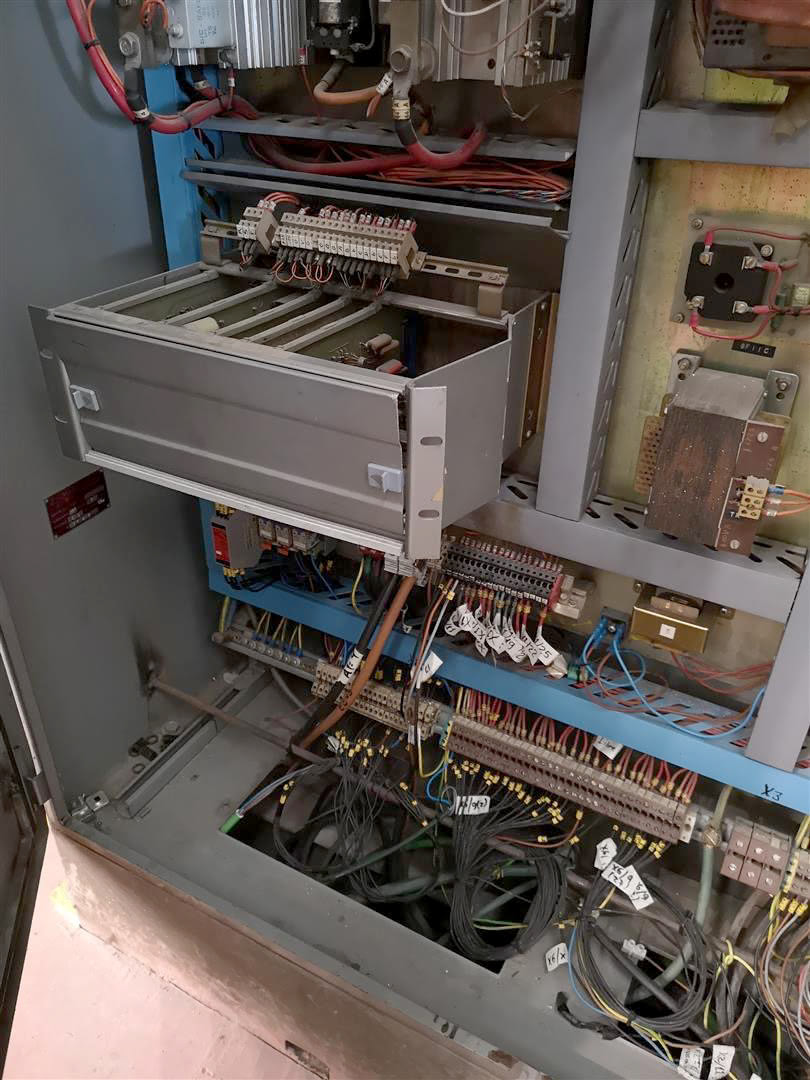

Photo 2
