Cross Cutting-Slitting Line 1,500 x 2.0 mm

Pos. 6,104

• constructor

  Grandini
• year of building

  2000
• condition

  very good
• location

  ex work, connected

Technical Data

• strip width

  1,500 mm
• strip thickness

  2.0 mm, 450 N/mm²
• decoiler

  10,000 kg
• coil IØ

  508 / 610 mm
• cross shear

  4.0 mm
• speed

  approx. 20 m/min.
• no. of slits

  4 pieces

First level ^(FEMA)

• leveling rolls

  7 pieces
• infeding rolls

  2 + 2 pieces

Second leveler ^(GRANDINI)

• leveling rolls

  8 pieces
• infeding rolls

  2 + 2 pieces

Line consists on ...

• coil car

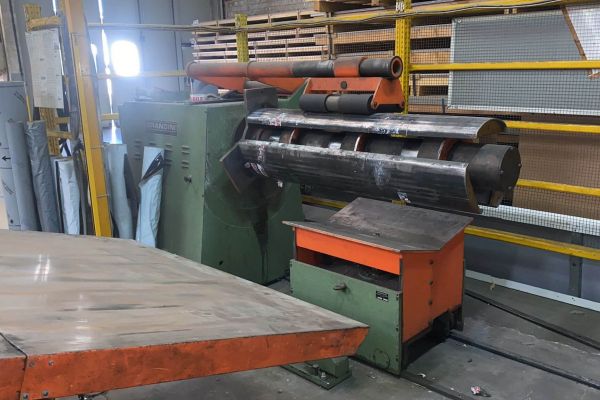

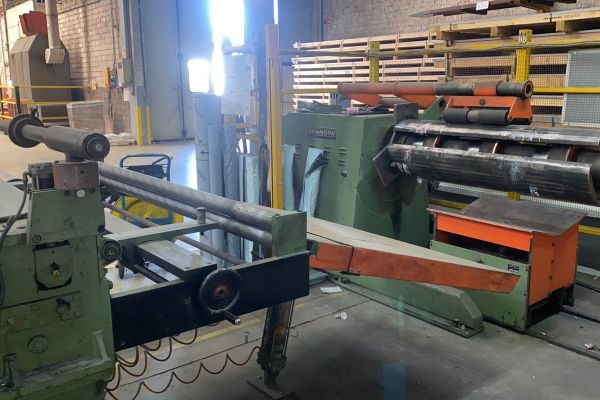

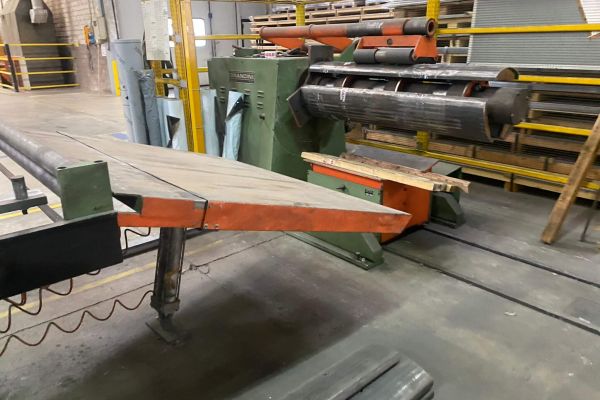

• decoiler 10 to.
• infeeding table
• infeeding guide
• foil coating unit

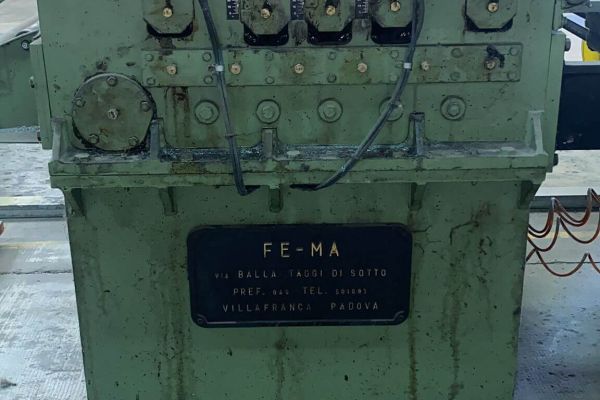

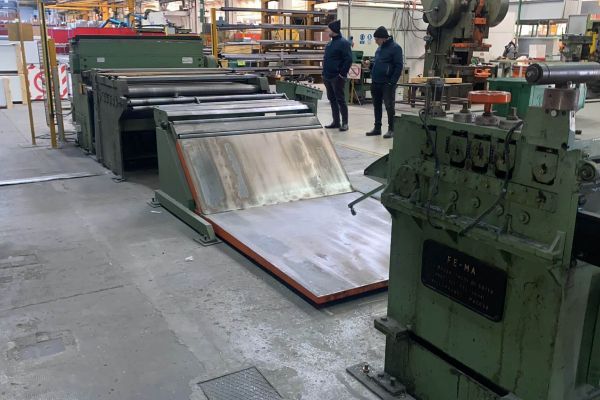

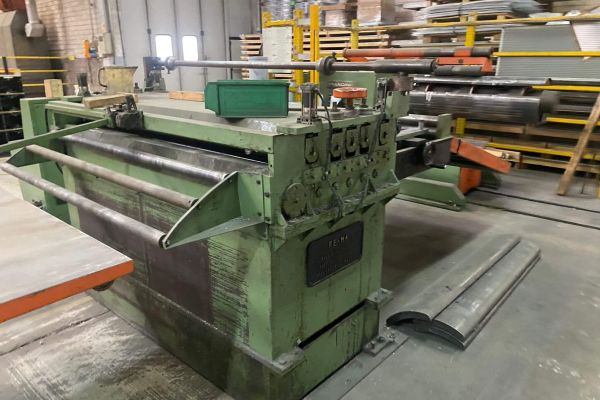

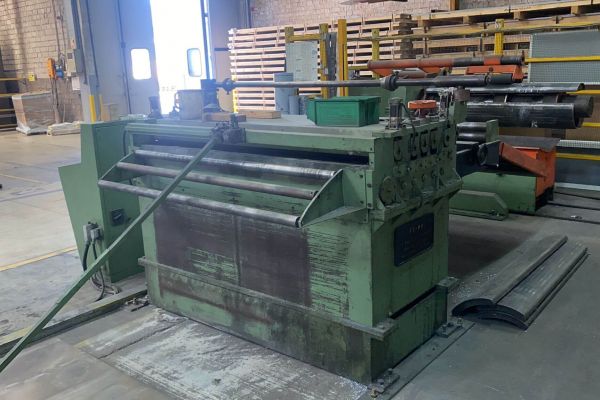

• leveling machine (FEMA)
• loop control
• over feeding table
• infeeding table
• roller conveyor

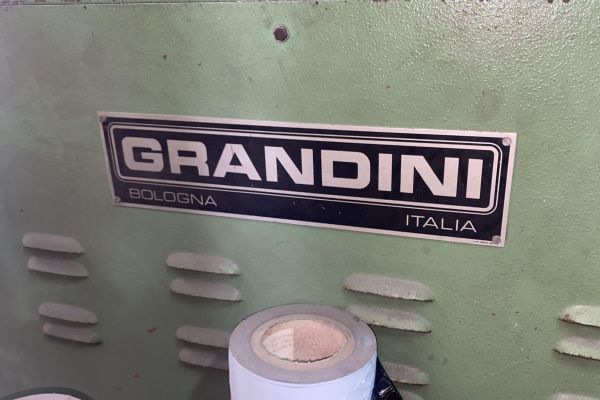

• leveling machine (GRANDINI)
• slitter

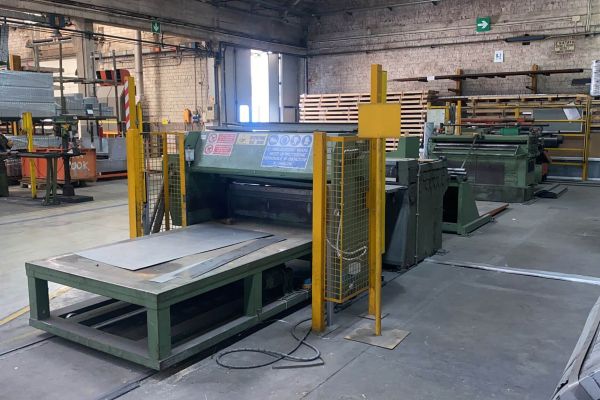

• cross shear max. 4.0 mm
• fotocell (saftey)

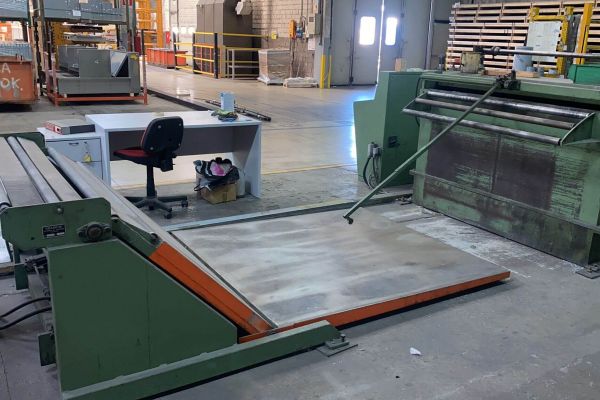

• stacking table moveable

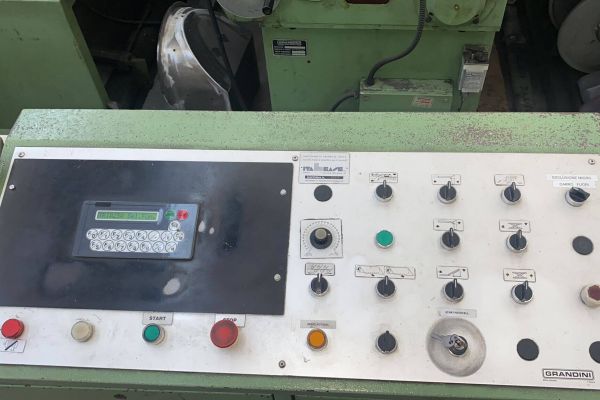

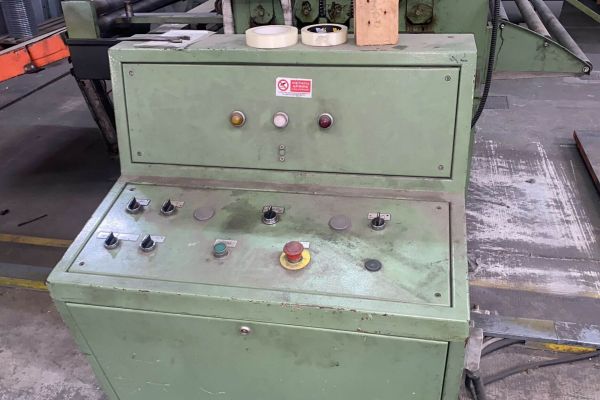

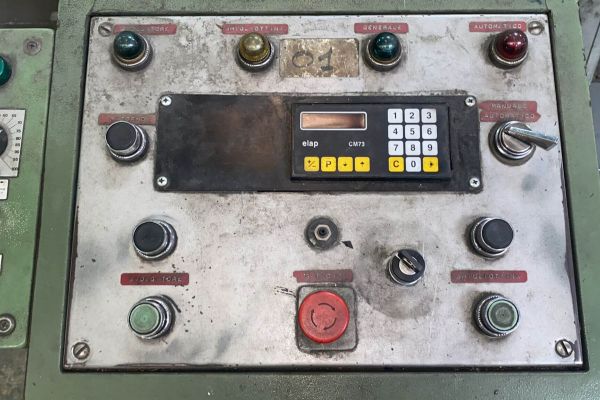

• electric control

Gallery

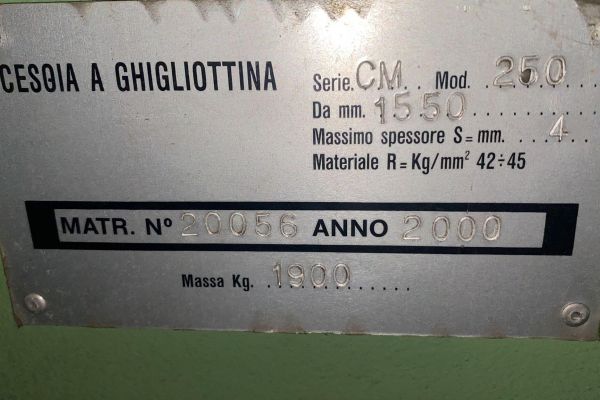

Photo 1

enlarge image

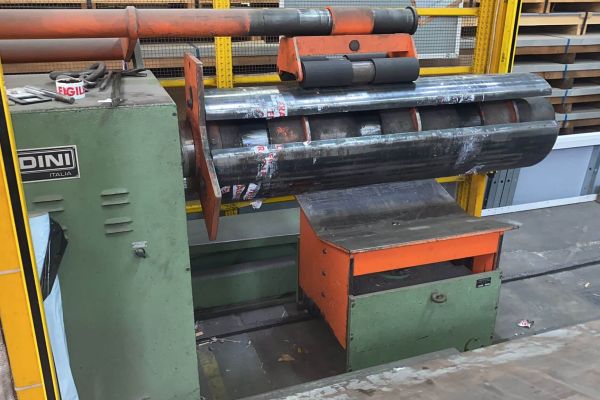

Photo 2

enlarge image

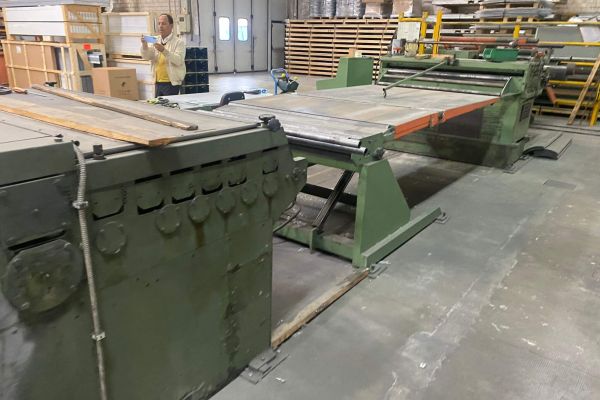

Photo 3
